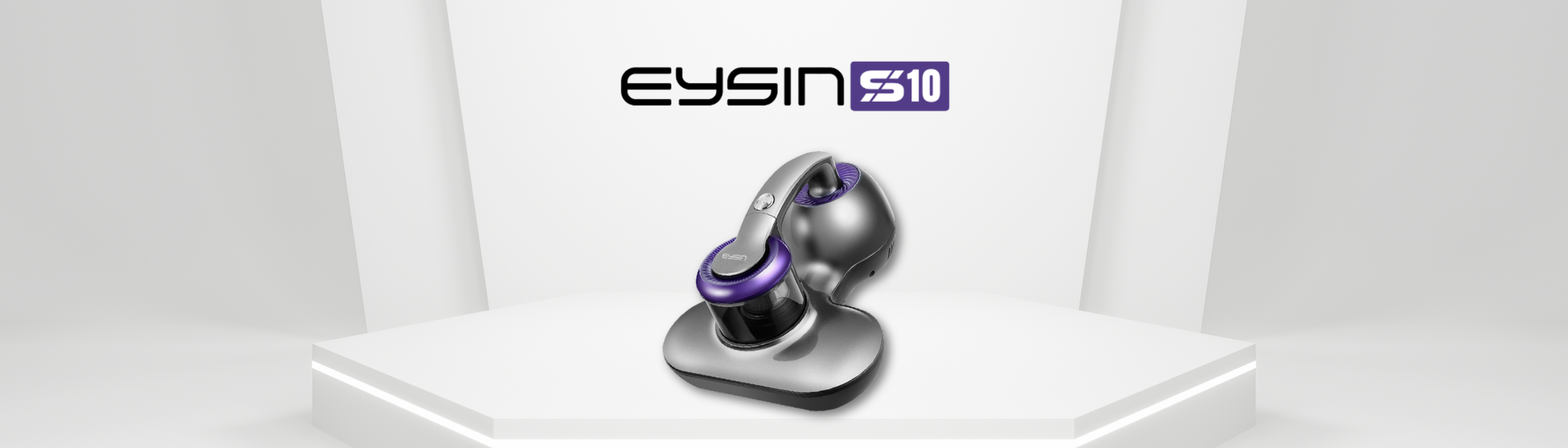

EYSIN S10 Dust Mite Vacuum Cleaner – User Manual

The EYSIN S10 is a powerful handheld vacuum cleaner designed to eliminate dust mites and allergens from your home. With its strong suction power and UV light sterilization 99.7%, it ensures a cleaner and healthier living environment.

📦 What’s in the Box

  • EYSIN S10 Main Unit

  • Dust Collection Cup

  • HEPA Filter

  • User Manual

🛠️ First-Time Setup

  1. Unpack the Unit: Carefully remove all packaging materials and ensure all components are present.

  2. Assemble Components: Attach the dust collection cup to the main unit.

  3. Check Filters: Ensure the HEPA filter is properly installed.

  4. Power Connection: Plug the unit into a standard 220-240V~/50/60Hz power outlet.

🧽 Operating Instructions

1. Preparation:

  • Ensure the surface to be cleaned is dry.

  • Remove any large debris manually.

2. Operation:

  • Press the power button to turn on the device.

  • Gently glide the vacuum cleaner over the surface, allowing the UV light and suction to effectively eliminate dust mites.

  • For optimal results, move the device slowly to ensure thorough cleaning.

3. Post-Cleaning:

  • Turn off the device and unplug it from the power source.

  • Empty the dust collection cup and clean the filters as needed.

🧼 Cleaning and Maintenance

  • Dust Collection Cup: Empty and rinse with warm soapy water after each use. Dry thoroughly before reassembling.

  • HEPA Filter: Clean every two weeks by gently tapping to remove dust. Replace every 3-6 months or as needed.

  • Exterior: Wipe with a damp cloth. Do not immerse the main unit in water.

Safety Tips:

  • Always unplug the device before cleaning or maintenance.

  • Do not use the vacuum cleaner on wet surfaces.

⚠️ Safety Precautions

  • Do not operate the appliance with a damaged cord or plug.

  • Keep hands and utensils away from moving parts.

  • Do not use the appliance outdoors.

  • Unplug the unit when not in use and before cleaning.

  • Do not immerse the motor unit in water or any other liquid.

🛠️ Troubleshooting

Issue Possible Cause Solution
Appliance not working Not plugged in Plug into a functioning outlet
  Dust collection cup not secured Ensure cup is properly attached
Unusual noise or vibration Loose parts Check and secure all components
Poor performance Filters clogged Clean or replace filters

📐 Technical Specifications

  • Model: EYSIN S10

  • Voltage: 220-240V~/50/60Hz

  • Power: 300W

  • UV Light: 12W

  • Suction Power: 15000PA

  • Cord Length: 4 meters

  • Dust Capacity: 0.6L

  • Weight: 1.2kg
